Ceramic CapacitorCompatible with 0201 (0603M) / 0402 (1005M) / 0603 (1608M) sizes
Narrow-pitch paper tape

Reduce the pitch of your tape-and-reel packaging to half the conventional spacing. We recommend ww5's "Narrow-Pitch Paper Tape-and-Reel Packaging."

What is narrow-pitch paper taping?

This packaging method doubles the number of packages per reel by halving the pocket pitch compared to conventional paper taping.

  • Original taping
  • Narrow-pitch paper tapingPitch 1/2
ww5 Official Portal | Quick & Secure Login ww5 Official Portal | Quick & Secure Login

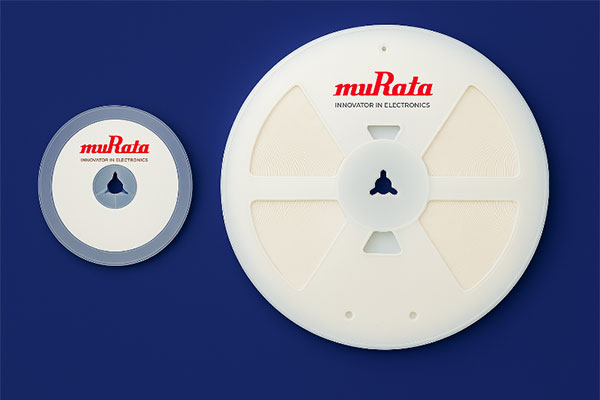

Part size inch (mm) Packaging materials Tape width Types of taping Pocket pitch Number of units per reel
φ180mm reel φ300mm reel
0201 (0603M) Paper 8mm Original 2mm 15,000 pcs 50,000 pcs
Narrow-pitch 1mm 30,000 pcs 100,000 to 150,000 pcs
0402 (1005M) Original 2mm 10,000 pcs 40,000 to 50,000 pcs
Narrow-pitch 1mm 20,000 pcs 80,000 to 100,000 pcs
0603 (1608M) Original 4mm 4,000 pcs 10,000 pcs
Narrow-pitch 2mm 8,000 pcs 30,000 pcs

Advantages

The introduction of narrow-pitch paper taping is expected to offer the following benefits.

Reduces resource consumption and waste

Compared to conventional taping methods, this solution can reduce packaging materials required for component packaging by more than half.
Furthermore, by reducing the energy required for transportation and lowering CO₂ emissions, it enables you to achieve both environmental sustainability and optimized logistics costs simultaneously.

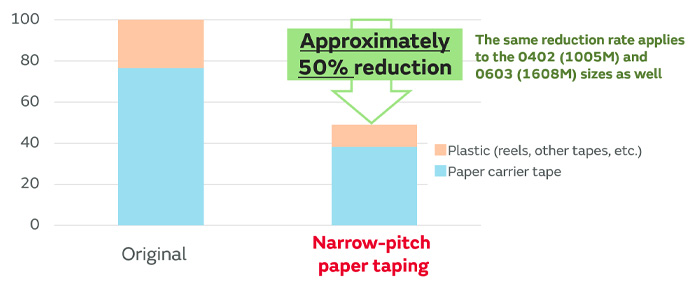

Comparison of Packaging Waste Volume (Example: For 0201 (0603M) Chip Size)

Reduces greenhouse gas emissions and water consumption

By reducing the greenhouse gas emissions and water consumption associated with the production of packaging materials, we contribute to the realization of a sustainable society.

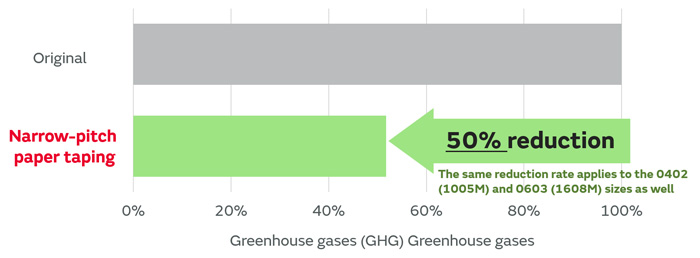

Comparison of Greenhouse Gas (GHG) Emissions (Example: For 0201 (0603M) Chip Size)

Reduces the number of component replenishments on the production line

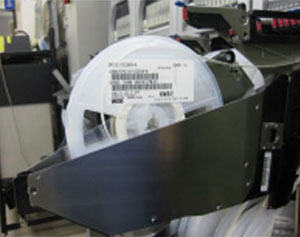

By increasing the number of components per package, you can reduce the number of times reels need to be set on the placement machine, contributing to increased production efficiency.

Reduces storage space

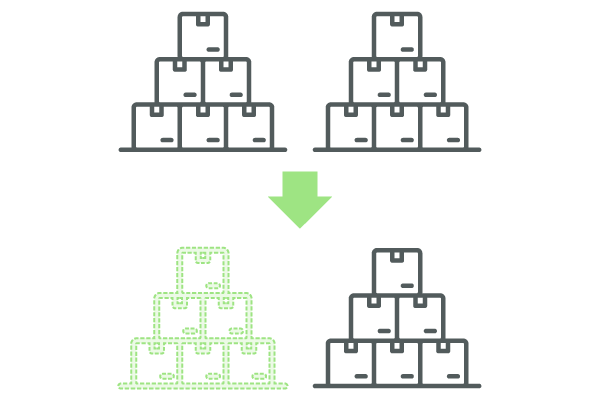

Compared to conventional taping, the number of rolls per package is more than double, so storage space can be reduced by more than half.
Saving storage space also helps reduce operational workload on the shop floor and boost production efficiency.

Compatible Parts / Tape Dimensions

It supports 0201 (0.6 × 0.3mm), 0402 (1.0 × 0.5mm) and 0603 (1.6 × 0.8mm) inch sizes.

Narrow-pitch paper tape compatible with 0201 (0603M) / 0402 (1005M) chip sizes

  • Tape width: 8 mm;
  • 1 mm pocket spacing

Narrow-pitch paper tape compatible with 0603 (1608M) chip size

  • Tape width: 8 mm;
  • 2 mm pocket spacing
ww5 Official Portal | Quick & Secure Login ww5 Official Portal | Quick & Secure Login
Part size inch (mm) W
(Tape width)
P0
(Feed hole)
P1
(Pocket pitch)
P2 P3 P4 E F T
0201 (0603M) 8 4 1 1 2 3 1.75 3.5 0.5mm max.
0402 (1005M) 8 4 1 1 2 3 1.75 3.5 1.8
0603 (1608M) 8 4 2 2 - - 1.75 3.5 1.8

mm
