Inductor for Power LinesSelection Guide(Product line up(General))

Main type:

Wound Metal alloy
Multilayer type
Wound Ferrite Core

We have an extensive lineup of inductors covering a wide range of sizes from 1.6 mm x 0.8 mm to 12 mm square, which are manufactured using multiple techniques that include metal alloy wire wound construction technique and ferrite multilayer technique.
We offer the optimum inductors for a wide range of applications including wearable devices, smartphones, medical applications, industrial electronics, and on board devices.

Structure	Description	Series

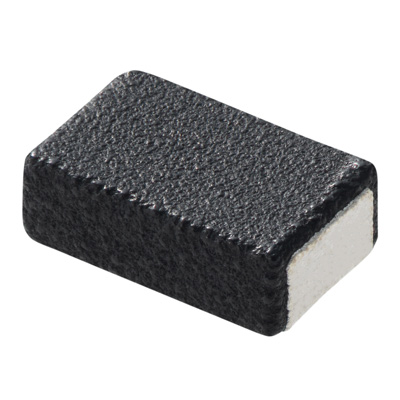

Wound Metal alloy	Metal alloy inductors are also called "metal composite inductors." Supports high current by using metal materials in which magnetic saturation does not occur so easily. This product can be used for a wide range of high current power circuits from smart phones to industrial electronics and automotive device applications.	DFEC/DFES series

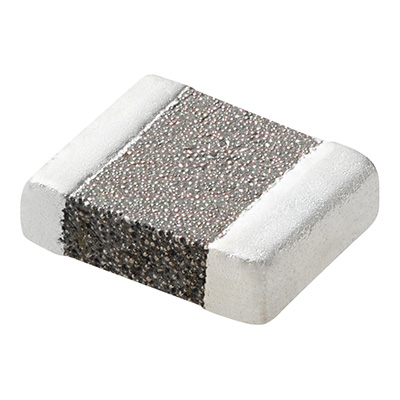

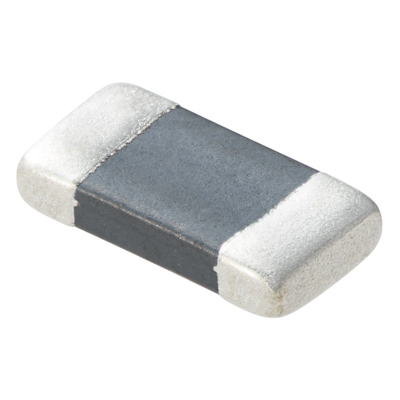

Multilayer Type	The features of this product is its small size and low profile. For example, 2012 or smaller footprint and 0.6mm height. This is ideal for low power circuits, including wearable devices and smartphones.	LQM series

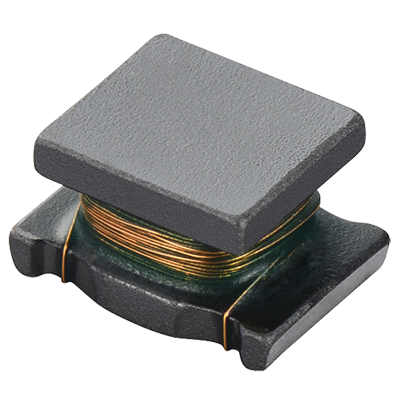

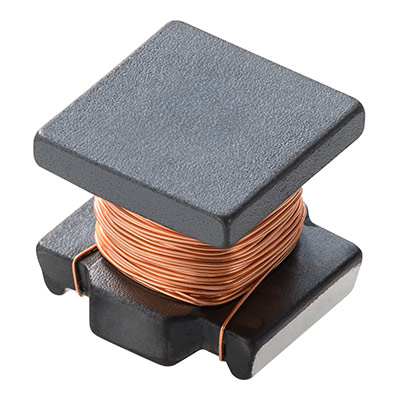

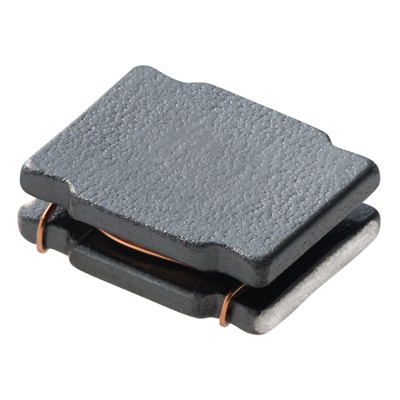

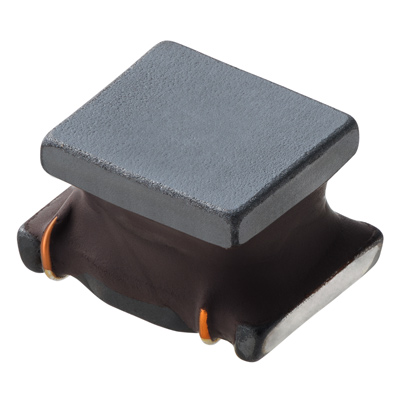

Wound Ferrite Core	A feature of this product is the extensive lineup which supports an inductance of 100 uH or more. It is suitable for step-up power supply circuits in backlights, and choke applications.	LQH series DEM series

For Power Circuits (For general)

Size Code in inch(in mm)	Structure	short series name/view	Series	Thickness (mm/max)	Inductance Range	Rated Current Range	Part Number List
0402 (1005)	Wound Ferrite Core	LQW15DN	LQW15DN_00	0.7	10µH - 15µH	100mA - 120mA	Click
0603 (1608)	Multilayer Type	LQM18PN	LQM18PN_B0	0.4	1.5µH	600mA	Click
			LQM18PN_C0	0.55	470nH - 2.2µH	700mA - 850mA	Click
			LQM18PN_D0	0.75	2.5µH	700mA	Click
			LQM18PN_DH	0.75	2.2µH	650mA	Click
			LQM18PN_F0	0.95	1µH	600mA	Click
			LQM18PN_FC	0.95	1µH - 4.7µH	370mA - 850mA	Click
			LQM18PN_FH	0.95	470nH - 2.2µH	700mA - 1.4A	Click
			LQM18PN_FR	0.95	220nH - 4.7µH	620mA - 1.25A	Click
			LQM18PN_GH	1.0	1µH - 3.3µH	1.05A	Click
		LQM18PW	LQM18PW_CH	0.65	1µH - 2.5µH	750mA - 950mA	Click
0805 (2012)	Wound Metal alloy	DFE21CCN	DFE21CCN_EL	0.8	240nH - 2.2µH	2.1A - 6.5A	Click
	Wound Metal alloy	DFE2012	DFE201210U	1.0	240nH - 2.2µH	2A - 6.5A	Click
	Multilayer Type	LQM21PN	LQM21PN_C0	0.55	470nH - 2.2µH	600mA - 1.1A	Click
			LQM21PN_G0	1.0	470nH - 3.3µH	800mA - 1.3A	Click
			LQM21PN_GC	1.0	1µH - 2.2µH	800mA - 900mA	Click
			LQM21PN_GE	1.1	1µH - 4.7µH	670mA - 1600mA	Click
			LQM21PN_GR	1.0	1µH - 4.7µH	800mA - 1.3A	Click
			LQM21PN_GS	1.0	2.2µH - 4.7µH	750mA - 950mA	Click
0806 (2016)	Wound Metal alloy	DFE2016	DFE2016CKA	0.65	1µH - 2.2µH	1.4A - 1.8A	Click
			DFE201610C	1.0	560nH - 2.2µH	1.5A - 2.8A	Click
			DFE201610E	1.0	240nH - 10µH	1A - 6.3A	Click
			DFE201610P	1.0	240nH - 2.2µH	2A - 5.4A	Click
			DFE201612C	1.2	470nH - 2.2µH	1.6A - 3.4A	Click
			DFE201612E	1.2	240nH - 4.7µH	1.8A - 6.6A	Click
			DFE201612P	1.2	240nH - 2.2µH	2.1A - 6.5A	Click
	Wound Ferrite Core	LQH2MCN	LQH2MCN_02	0.95	1µH - 82µH	90mA - 485mA	Click
		LQH2MCN	LQH2MCN_52	0.7	1µH - 22µH	130mA - 595mA	Click
		LQH2MPN	LQH2MPN_GR	0.95	330nH - 82µH	210mA - 2.2A	Click
	Multilayer Type	LQM2MPN	LQM2MPN_G0	1.0	470nH - 4.7µH	1.1A - 1.6A	Click
1008 (2520)	Wound Metal alloy	DFE2520	DFE252007F	0.7	470nH - 4.7µH	1.2A - 3.3A	Click
			DFE252008C	0.8	470nH - 4.7µH	1.1A - 3A	Click
			DFE252008U	0.8	470nH - 10µH	1A - 4.5A	Click
			DFE252010C	1.0	470nH - 10µH	1A - 3.5A	Click
			DFE252010F	1.0	220nH - 10µH	1.7A - 7.2A	Click
			DFE252010P	1.0	330nH - 4.7µH	1.7A - 5.7A	Click
			DFE252012C	1.2	470nH - 10µH	1A - 3.8A	Click
			DFE252012F	1.2	330nH - 10µH	1.4A - 7.6A	Click
			DFE252012P	1.2	330nH - 4.7µH	2A - 6.6A	Click
	Wound Ferrite Core	LQH2HPN	LQH2HPN_DR	0.6	470nH - 22µH	270mA - 1.67A	Click
	Wound Ferrite Core	LQH2HPN	LQH2HPN_GR	1.0	470nH - 100µH	210mA - 2.9A	Click
	Multilayer Type	LQM2HPN	LQM2HPN_G0	1.0	470nH - 4.7µH	1.1A - 1.8A	Click
			LQM2HPN_GC	1.0	1µH - 4.7µH	800mA - 1.5A	Click
			LQM2HPN_GS	1.0	2.2µH - 4.7µH	1A - 1.1A	Click
			LQM2HPN_J0	1.2	1µH - 3.3µH	1A - 1.5A	Click

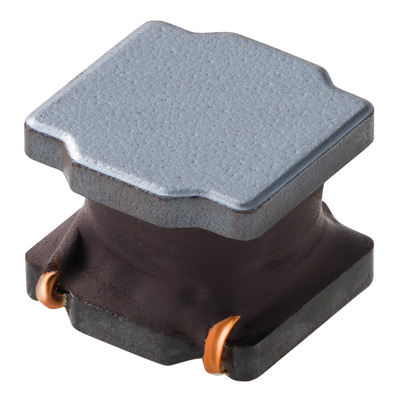

3mm square	Wound Ferrite Core	LQH3NPN	LQH3NPN_JR	1.2	680nH - 47µH	570mA - 2.86A	Click
3mm square	Wound Ferrite Core	LQH3NPN	LQH3NPN_ME	1.5	1µH - 100µH	430mA - 3A	Click
1206 (3216)	Multilayer Type	LQM31PN	LQM31PN_00	0.95	470nH - 4.7µH	700mA - 1.4A	Click
1210 (3225)	Wound Metal alloy	DFE3225	DFE322510C	1.0	470nH - 10µH	1A - 3.8A	Click
			DFE322512C	1.2	470nH - 10µH	1.2A - 4.7A	Click
			DFE322512F	1.2	330nH - 10µH	1.7A - 8.5A	Click
			DFE322520F	2.0	470nH - 22µH	4.4A - 8.5A	Click
	Wound Ferrite Core	LQH32P	LQH32PB_N0	1.7	470nH - 120µH	200mA - 3.4A	Click
			LQH32PB_NC	1.7	470nH - 22µH	650mA - 4.4A	Click
			LQH32PN_N0	1.7	470nH - 120µH	200mA - 3.4A	Click
			LQH32PN_NC	1.7	470nH - 22µH	650mA - 4.4A	Click
4mm square	Wound Ferrite Core	LQH44PN	LQH44PN_PR	1.8	1µH - 220µH	300mA - 4.3A	Click
		LQH43P	LQH43PB_26	2.8	1µH - 220µH	240mA - 3.4A	Click
		LQH43P	LQH43PN_26	2.8	1µH - 220µH	240mA - 3.4A	Click
5mm square	Wound Ferrite Core	LQH5BP	LQH5BPB_T0	2.2	470nH - 22µH	1.4A - 7.7A	Click
			LQH5BPN_38	4.0	1µH - 150µH	650mA - 7A	Click
			LQH5BPN_T0	2.2	470nH - 22µH	1.4A - 7.7A	Click

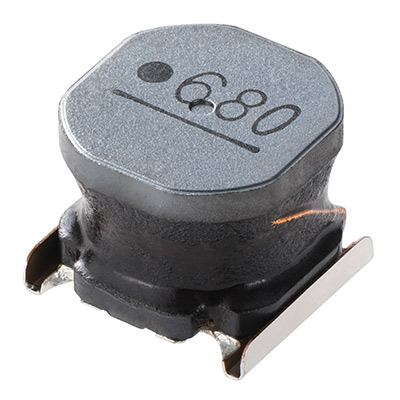

6～9mm square	Wound Ferrite Core	DG60	DG6045C	4.5	1µH - 100µH	900mA - 9.5A	Click
		DG60	DG6050C	5.0	1.2µH - 100µH	1.2A - 9.8A	Click
		DEM80	DEM8030C	3.0	2.2µH - 47µH	1.3A - 6.2A	Click
			DEM8040C	4.0	1.5µH - 33µH	2.4A - 10A	Click
			DEM8045C	4.5	1.5µH - 47µH	2.1A - 11.2A	Click

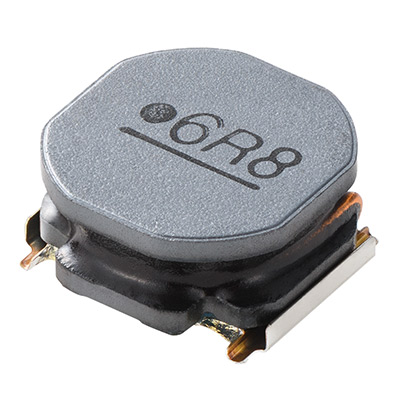

		DG80	DG8040C	4.0	1µH - 100µH	1.3A - 10.4A	Click

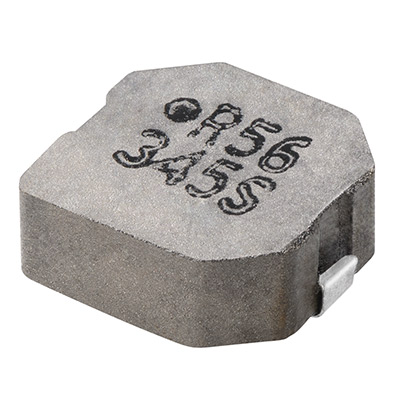

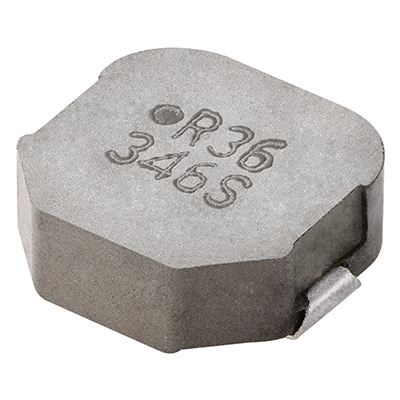

	Wound Metal alloy	FCUL05	FCUL0530	3.0	360nH - 470nH	16A - 18A	Click
		FCUL06	FCUL0624	2.4	220nH - 470nH	17A - 24A	Click
		FCUL06	FCUL0630	3.0	120nH - 680nH	15A - 32A	Click

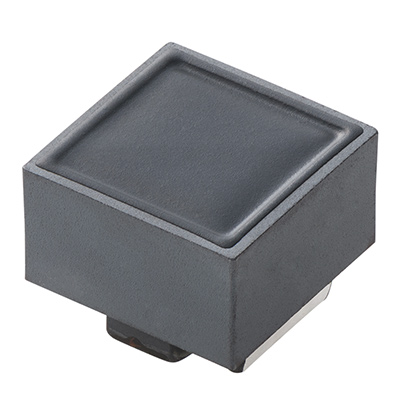

10mm square and over	Wound Ferrite Core	DEM10050	DEM10050C	5.0	1.5µH - 33µH	3.5A - 15.3A	Click
	Wound Ferrite Core	DEM10050	DEM10050C_DD	5.0	1.5µH - 33µH	3.5A - 15.3A	Click
	Wound Metal alloy	FCUL10	FCUL1040	4.0	180nH - 420nH	34A - 53A	Click
	Wound Metal alloy	FCUL10	FCUL1060	6.0	360nH - 560nH	34A - 41A	Click

For Choke circuits (For general)

Size Code in inch(in mm)	Structure	short series name/view	Series	Thickness (mm/max)	Inductance　Range	Rated Current　Range	Part Number List

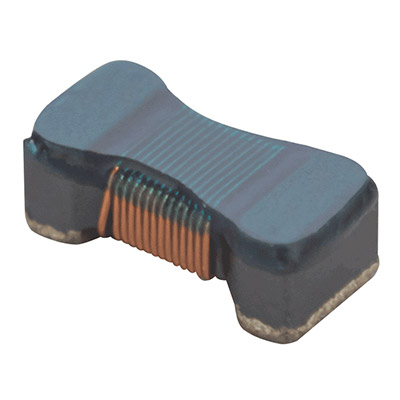

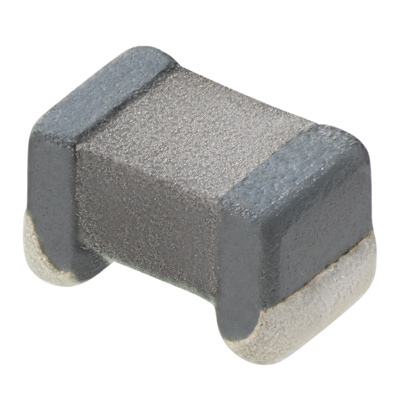

0402 (1005)	Wound Ferrite Core	LQW15CE	LQW15CE_10	0.6	1000nH - 3300nH	220mA - 480mA	Click
		LQW15CN	LQW15CN_00	0.6	18nH - 200nH	390mA - 1400mA	Click
		LQW15CN	LQW15CN_10	0.6	20nH - 3300nH	130mA - 2200mA	Click
0603 (1608)		LQW18CN	LQW18CN_00	0.95	4.9nH - 650nH	430mA - 2600mA	Click
		LQW18CN	LQW18CN_L0	0.95	30nH - 590nH	420mA - 1350mA	Click

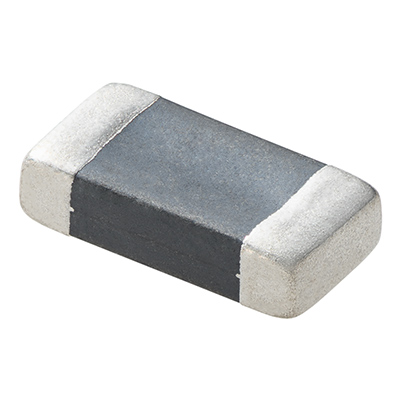

	Multilayer Type	LQM18DN	LQM18DN_70	0.95	6.8µH - 47µH	180mA - 330mA	Click
0805 (2012)		LQM21DN	LQM21DN_70	1.45	10µH - 100µH	160mA - 300mA	Click
0805 (2012)		LQM21FN	LQM21FN_80	1.45	4.7µH - 10µH	100mA - 120mA	Click

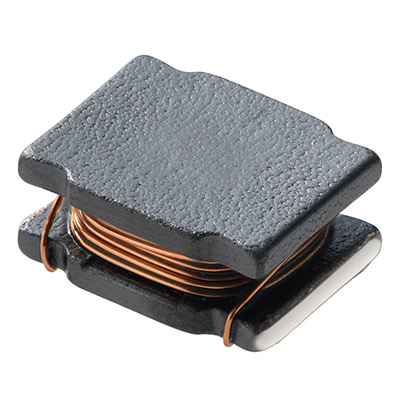

1210 (3225)	Wound Ferrite Core	LQH32CN	LQH32CN_23	2.2	1µH - 560µH	60mA - 800mA	Click
			LQH32CN_33	2.2	150nH - 10µH	450mA - 1.45A	Click
			LQH32CN_53	1.7	1µH - 100µH	100mA - 1A	Click
		LQH32DN	LQH32DN_23	2.2	1µH - 560µH	60mA - 800mA	Click
		LQH32DN	LQH32DN_53	1.7	1µH - 100µH	100mA - 1A	Click
4mm square		LQH43CN	LQH43CN_03	2.8	1µH - 470µH	90mA - 1.08A	Click
4mm square		LQH43CN	LQH43CN_33	2.8	560nH - 3.9µH	1.6A - 2.95A	Click
5mm square		LQH55DN	LQH55DN_03	5.0	120nH - 10mH	50mA - 6A	Click
6～9mm square		LQH66SN	LQH66SN_03	5.0	270nH - 10mH	50mA - 6A	Click
