Power Productsww5 Power Solutions Front-End Titanium & Platinum Efficiency AC-DC Power

Powering Your Server, Storage, and Networking Applications. Delivering reliable, titanium efficient power. AC-DC Power Supplies.

Relevant Applications
Product Benefits
Application Notes
Inquiries

Providing your Server, Storage, & Networking power solution needs

High power efficiency 96% at 50% load beyond 80Plus certified Titanium efficiency
N+1 redundancy capable; hot plugging (up to 8 in parallel with active current sharing)
From 450 to 3600 Watts output power
Power Management PMBus™/ I2C interface protocol for control, programming, and monitoring
Wide AC input voltage range with active PFC
High power in a compact design

Relevant Applications

Edge Computing
Artificial Intelligence
Server, Storage, Networking

Autonomous Vehicles
Local/Decentralized Data Centers

Main image of Relevant Applications

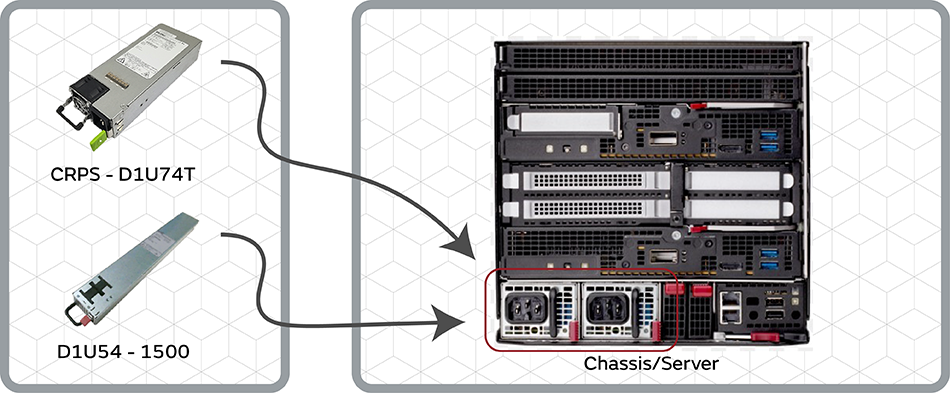

Hot Swappable N+1 Redundant Front-End Power Supplies

Image of Hot Swappable N+1 Redundant Front-End Power Supplies

Product Benefits

Slim 54mm Series for Server, Storage, and Networking

Model	Output Power	Input Voltage	Output Voltage	Package Dimensions (L × W × H)
D1U54T-W-800-12-HxxC	800 Watt	90 - 264Vac	12V	228.6mm × 54.5mm × 40 mm 9" × 2.15" × 1U
D1U54T-W-1200-12-HxxAC	1200 Watt	90 - 264Vac	12V	228.6mm × 54.5mm × 40 mm 9" × 2.15" × 1U
D1U54T-W-1500-12-HUxTC	1500 Watt	90 - 264Vac	12V	321.5mm × 54.5mm × 40 mm 12.65" × 2.15" × 1U
D1U54T-M-1500-12-HUxC	1500 Watt	90 - 305Vac 192 - 400Vdc	12V	321.5mm × 54.5mm × 40 mm 12.65" × 2.15" × 1U
D1U54T-W-2000-12-HC4TC	2000 Watt	90 - 264Vac	12V	321.5mm × 54.5mm × 40 mm 12.65" × 2.15" × 1U
D1U54T-M-2500-12-HxxC	2500 Watt	90 - 305Vac 192 - 400Vdc	12V	321.5mm × 54.5mm × 40 mm 12.65" × 2.15" × 1U

CRPS Models (Common Redundant Power Supply) for Server, Storage and Networking

Model	Output Power	Input Voltage	Output Voltage	Package Dimensions (L × W × H)
D1U74T-W-1600-12-HB4AC	1600 Watt	90 - 264Vac 180Vdc - 300Vdc	12V	185mm × 73.5mm × 40 mm 7.28" × 2.89" × 1U
D1U74T-W-2700-12-HBxC	2700 Watt	90 - 264Vac 180Vdc - 300Vdc	12V	185mm × 73.5mm × 40 mm 7.28" × 2.89" × 1U

86mm Series for Server, Storage and Networking

Model	Output Power	Input Voltage	Output Voltage	Package Dimensions (L × W × H)
D1U86T-W-800-12-HB4C	800 Watt	90 - 264Vac	12Vdc	196mm × 86mm × 40 mm 7.75" × 3.4" × 1U
D1U86T-W-1600-12-HBxC	1600 Watt	90 - 264Vac	12Vdc	196mm × 86mm × 40 mm 7.75" × 3.4" × 1U
D1U86T-W-2200-12-HBxC	2200 Watt	90 - 264Vdc	12Vdc	196mm × 86mm × 40 mm 7.75" × 3.4" × 1U

AC/HVDC Series for Datacenter, Server, Storage and Networking

Model	Output Power	Input Voltage	Output Voltage	Package Dimensions (L × W × H)
D1U54P-M-800-12-HxxBC	800 Watt	90 - 305Vac 260 - 400Vdc	12V	236.6mm × 54.5mm × 40mm 9.31” × 2.15” × 1U
D1U54T-M-1500-12-HUxC	1500 Watt	90 - 305Vac 192 - 400Vdc	12V	321.5mm × 54.5mm × 40 mm 12.65" × 2.15" × 1U
D1U54P-M-1500-12-HUxC	1500 Watt	90 - 305Vac 192 - 400Vdc	12V	321.5mm × 54.5mm × 40 mm 12.65" × 2.15" × 1U
D1U54T-M-2500-12-HxxC	2500 Watt	90 - 305Vac 192 - 400Vdc	12V	321.5mm × 54.5mm × 40 mm 12.65" × 2.15" × 1U
MWOCP74-3000-A-RM	3030 Watt	90 - 305Vac 192 - 400Vdc	12V	550mm × 73.5mm × 40 mm 21.65" × 2.89" × 1U
MWOCP68-3600-D-RM	3600 Watt	180 - 305Vac	54.5V	490mm × 68mm × 40 mm 19.29" × 2.68" × 1U
MWOCP68-3600-B-RM	3600 Watt	180 - 305Vac	50.5V	490mm × 68mm × 40 mm 19.29" × 2.68" × 1U

Application Notes

PMBus™ Communication Protocol Application Note

Interface Connector Card Application Note

Inquiries

Please make inquiries (further information, sample request and technical support) about our products introduced here using the contact form below.
