Apply for free sample

my ww5 Free samples of TVS Diodes. Submit your request here.

You must register as a my ww5 member to request samples.

*my ww5 is a registered members-only portal website for engineers. As a registered member, users can apply for free product samples and access the information they need for their designs and certification including simulation data and the failure rate.

Sample kits are also available. Submit your request here. A kit includes 10 samples of each product.

my ww5 member registration is not required to request sample kits.

*Up to 2 kits can be requested per request. Please enter the number of kits you wish to request.
*Sample requests may be denied depending on the intended product application. Thank you for your understanding.

Part Number List

Below is a list of the sample part numbers you can request.

If you want to know the details of a part number, please click on that part number below.
If you already know the details of the part number and you want to request a sample, please click on the request number of the sample you need. You will be transferred to the sample request cart.

Part Number (Click to go to the Details page.)	Size (mm)	Channel Numbers	Capacitance (pF)	VBR (min.)	IEC61000-4-2 (contact)	Reverse stand-off voltage	Number of sample requests (Please select the number of samples you need. This will send you to the Cart page.)
LXES02TAA1-144	0.4×0.2	1ch	5.0	7.0V	8kV	5.5V	100	200	300	400	500
LXES02TAA1-145	0.4×0.2	1ch	0.35	7.0V	8kV	5.5V	100	200	300	400	500
LXES03TAA1-142	0.6×0.3	1ch	5.0	7.0V	8kV	5.5V	100	200	300	400	500
LXES03TAA1-199	0.6×0.3	1ch	1.0	7.0V	30kV	5.5V	100	200	300	400	500
LXES03TBB1-141	0.6×0.3	1ch	0.45	7.0V	8kV	5.5V	100	200	300	400	500
LXES1UTAA1-157	1.0×0.6	1ch	0.5	7.0V	8kV	6V	100	200	300	400	500

*Please be aware that sample requests may occasionally be canceled for various reasons.
*You may not request samples of the same part number more than once within a 30-day period.
*
You must enable cookies in your browser in order to use the my ww5 free sample request program. Please also refer to our policy regarding samples.

How to apply

For how to request samples on my ww5, refer to the steps below.

1Create my ww5 account

We will send you an email after your account is created. Follow the instructions in the email to complete the account registration process.
Sign in - my ww5
2Application to use "TVS Diodes" site

It may take several days before you are able to use the site.
3Request samples

Check the details of your application, and enter the necessary information such as the address where the samples should be sent. When your application is complete, a notification of completion will be sent automatically to the email address registered to your my ww5 account.

Purchase a sample (Authorized distributor stock check)

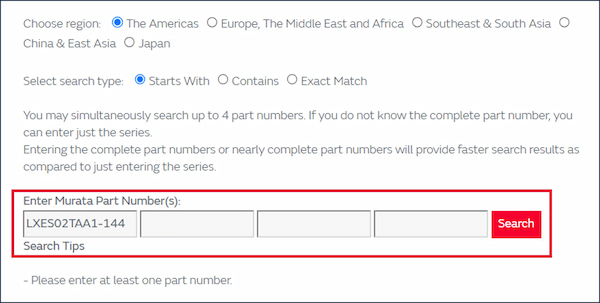

You can search the quantity of stock of each dealer by entering the desired product number in the "Enter ww5 Part Number(s)" field on the Stock Check page.
